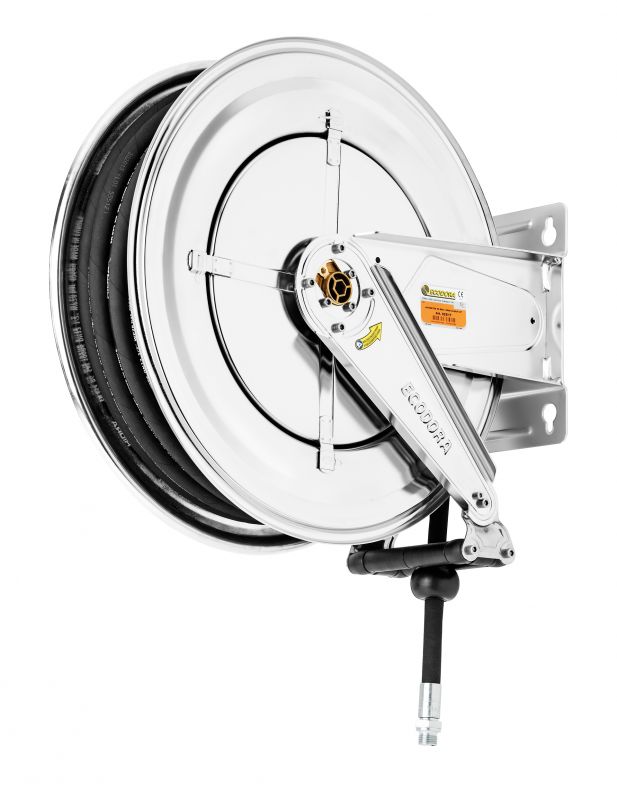

AISI 304 stainless steel fixed hose reel s. 530, for AdBlue®, 10 bar, EPDM antistatic hose 10 m, ø 19x27 mm. Flow path in AISI 304 stainless steel
Pressure | 10 bar |
Compatible fluids | AdBlue® |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | fixed |
Material | AISI 304 stainless steel |
Couplings | AISI 304 stainless steel |
Hose | p/n 882/10 |
ø e hose length | ø 3/4" - 10 m |
Inlet | G 3/4" (f) |
Outlet | G 3/4" (m) |
Reel flow path | AISI 304 stainless steel |
This product is also available without hose
