430/73

p/n 430/73

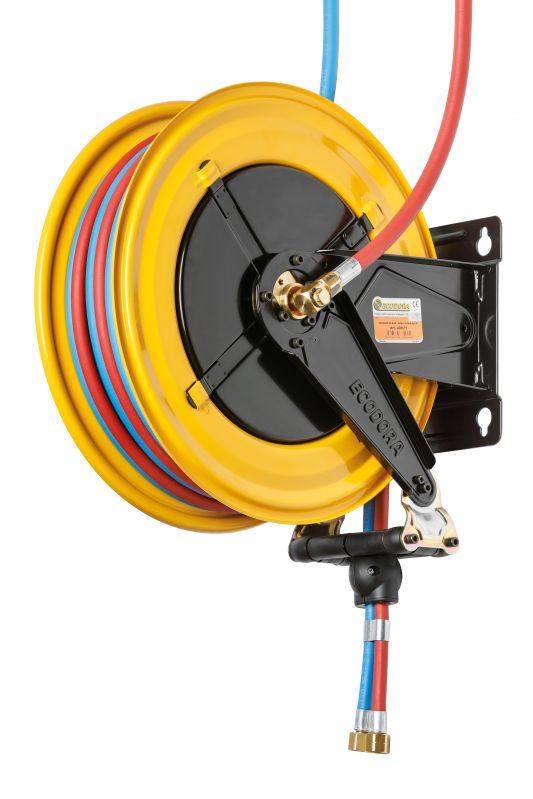

Fixed hose reel s. 430, for welding, 20 bar, twin gum hose SBR/EPDM 10 m, 2 x ø 3/8"

Download

Product sheet

File PDF - 200 KB

Features

Pressure 20 bar
Compatible fluids welding
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings brass
Hose p/n 993/13
ø e hose length ø 2 x 3/8" - 10 m
Inlet G 3/8" (m)
Outlet G 3/8" (m)
Reel flow path brass - zinc plated steel

Certifications

430/73

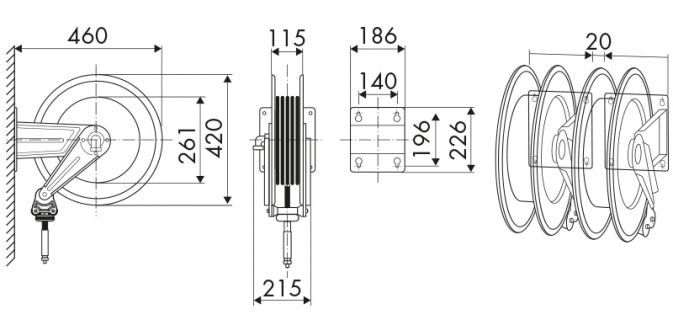

OVERALL DIMENSIONS (mm)

430/73

This product is also available without hose

Go to the sheet
