434/300

p/n 434/300

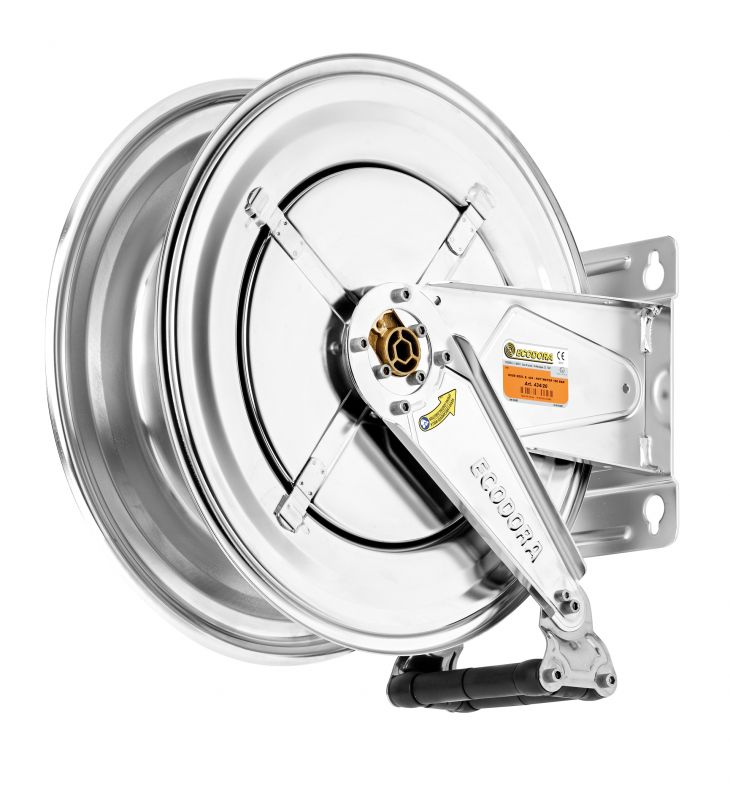

AISI 304 stainless steel fixed hose reel s. 430, for oil and water, 200 bar, without hose. Arrangement for double inlet-outlet. Inlet-outlet G 3/8" (m)

Download

Product sheet

File PDF - 200 KB

Features

Pressure 200 bar
Compatible fluids oils and similar products - water
Swivel joint 2 AISI 304 stainless steel swivels joint
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 304 stainless steel

Certifications

434/300

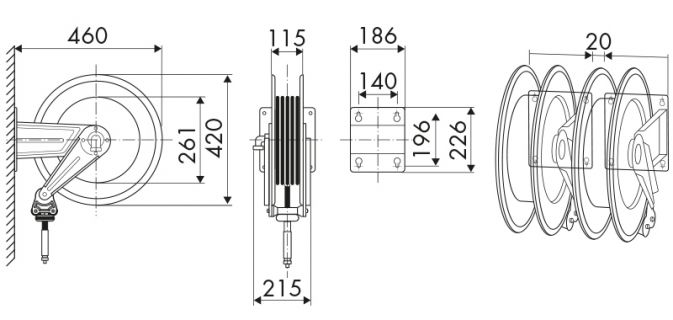

OVERALL DIMENSIONS (mm)

434/300

Sectors of use

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
13 m 12 m 10 m
